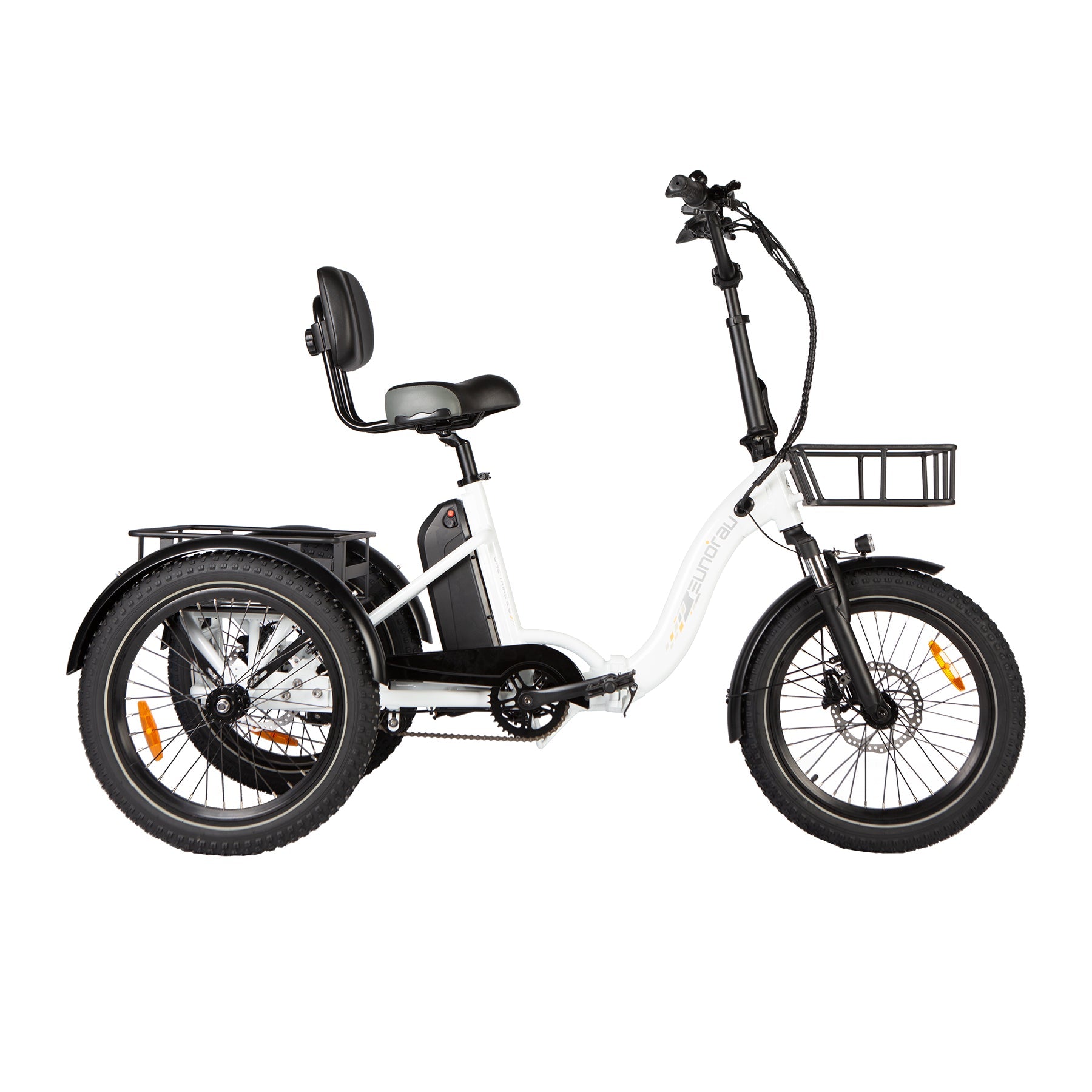

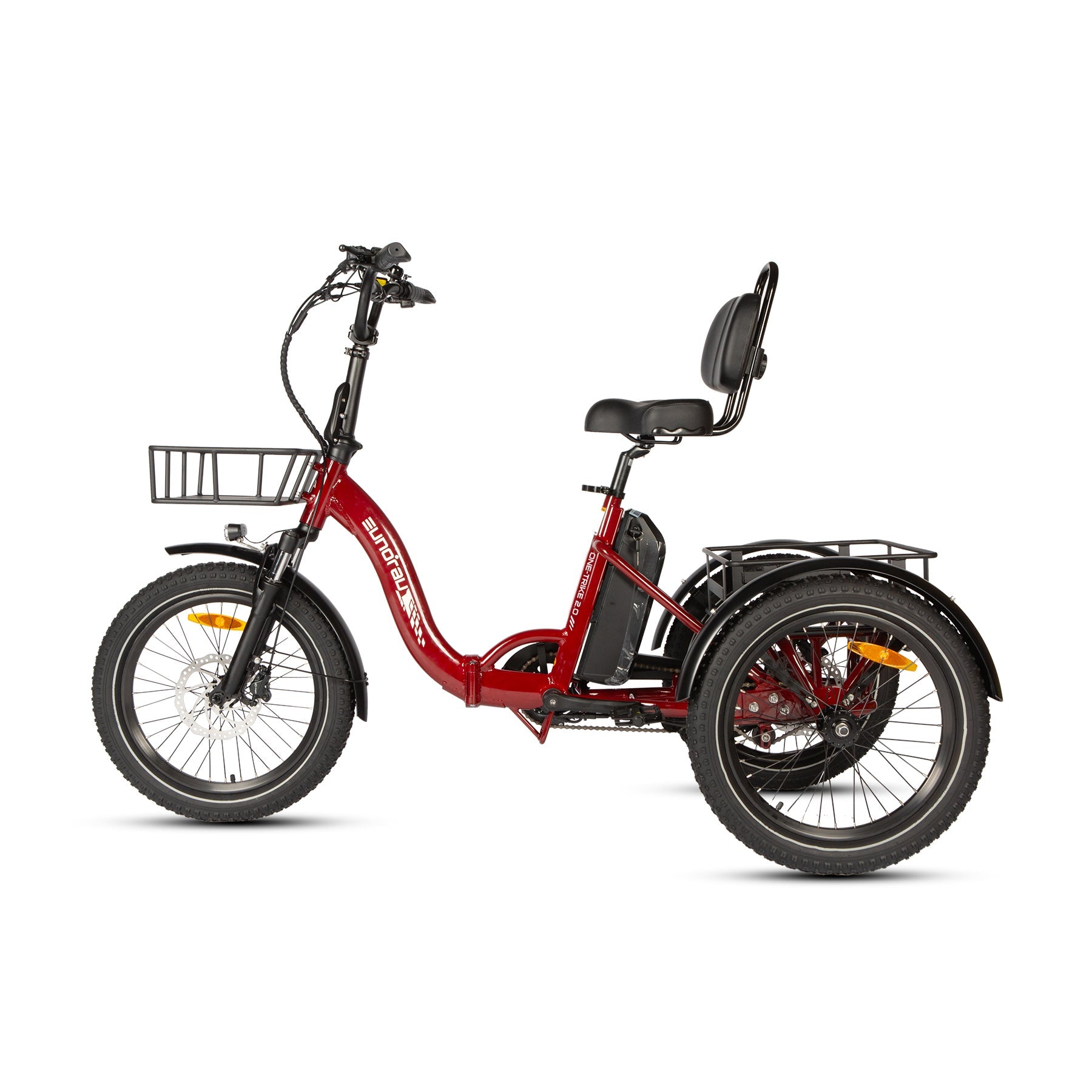

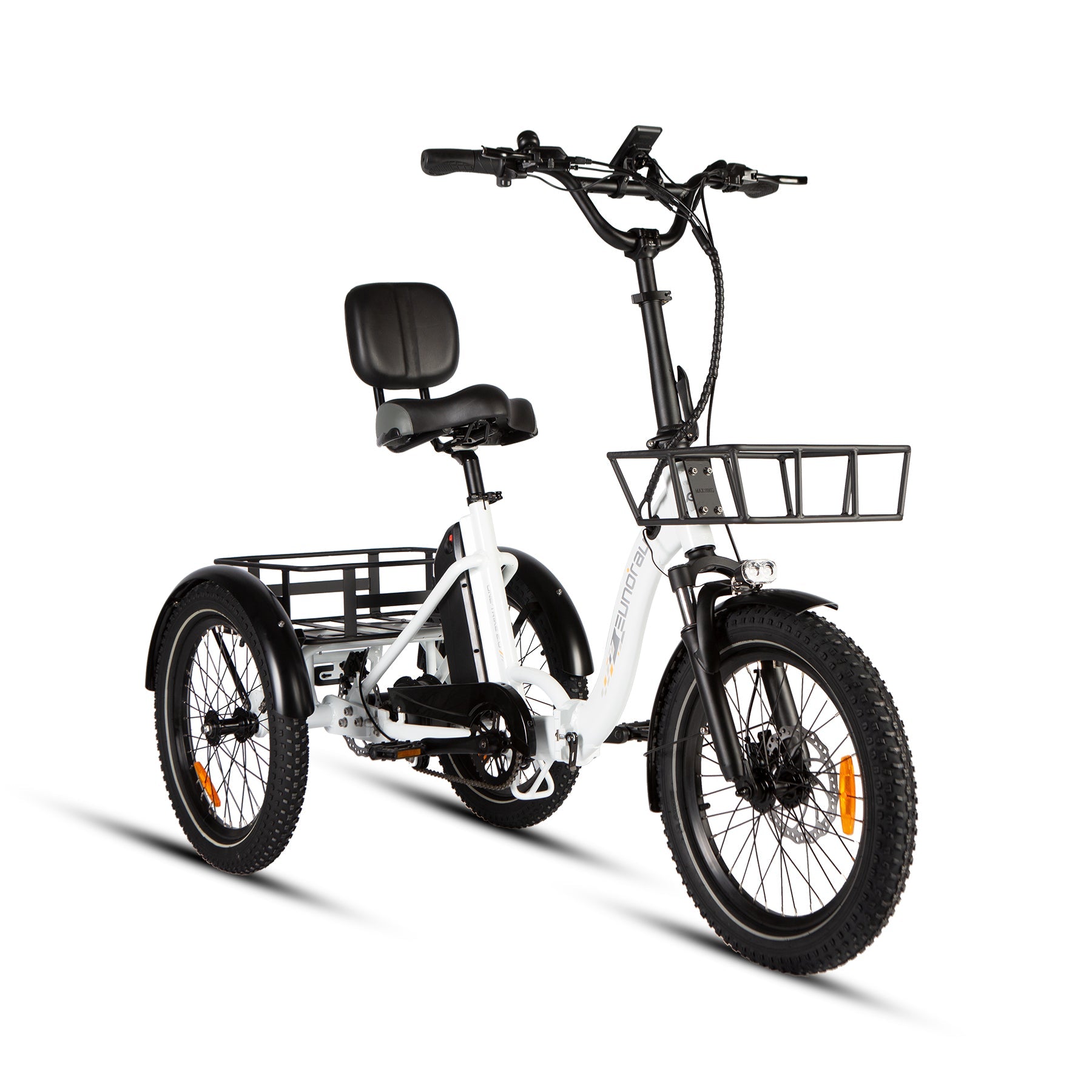

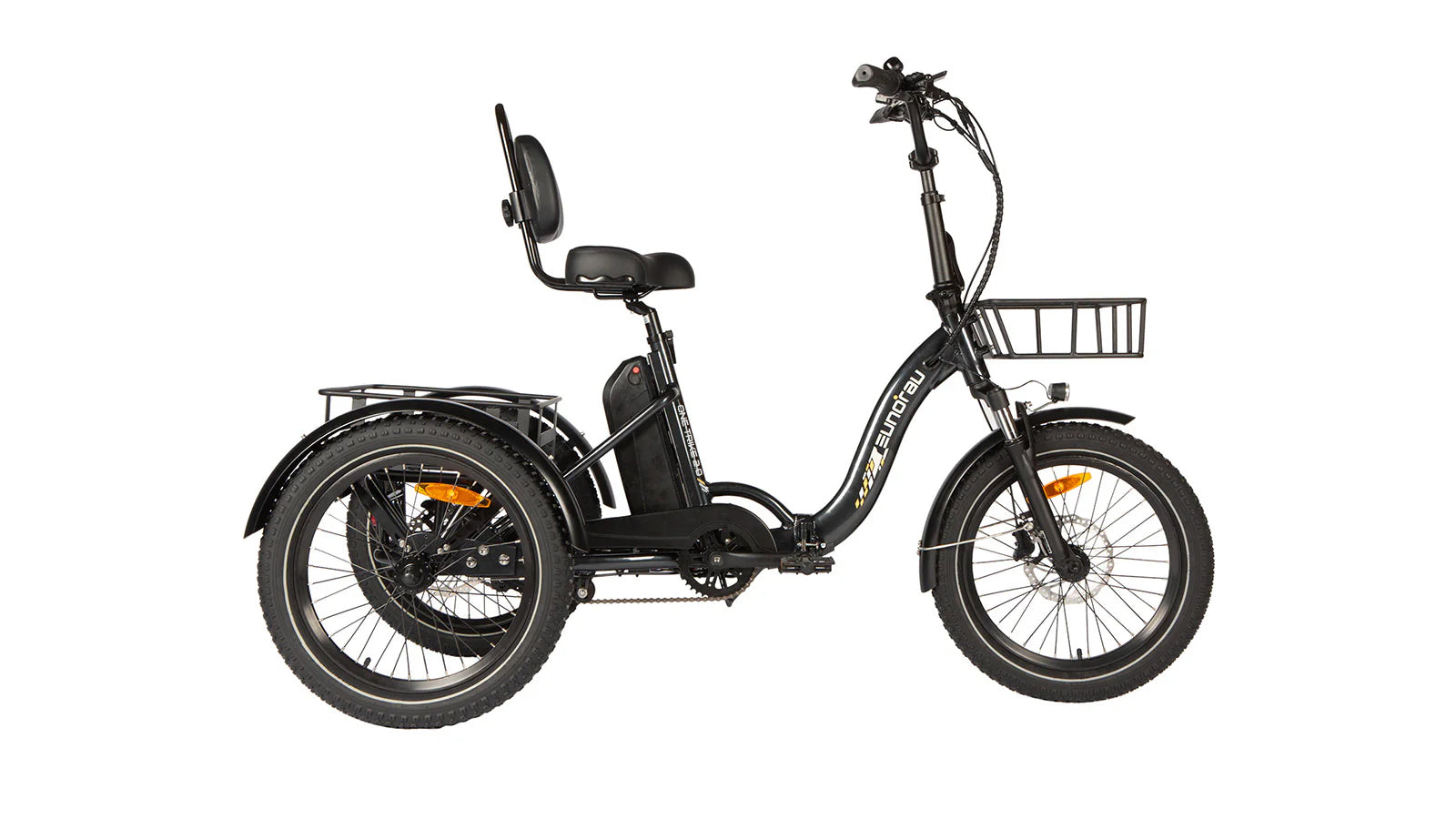

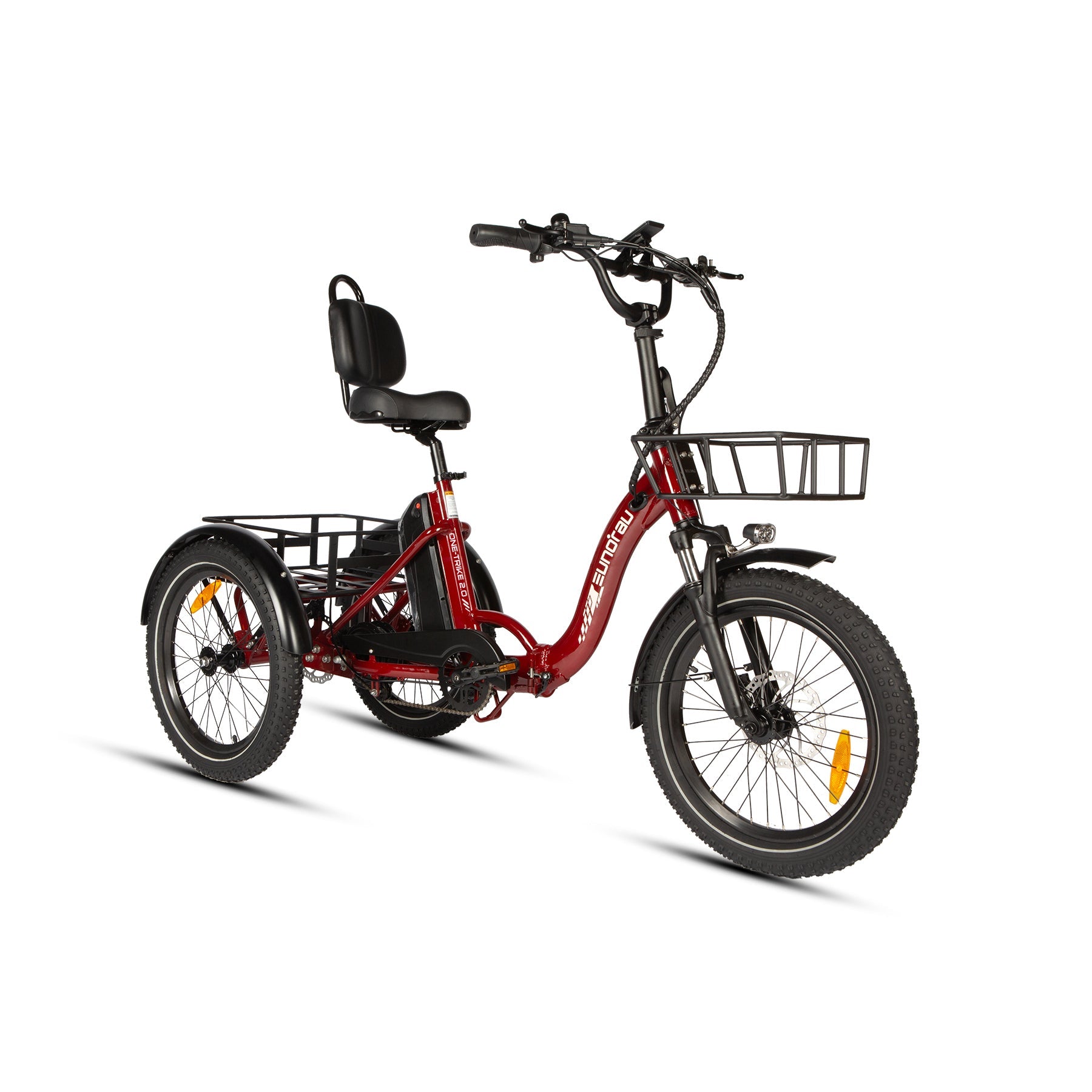

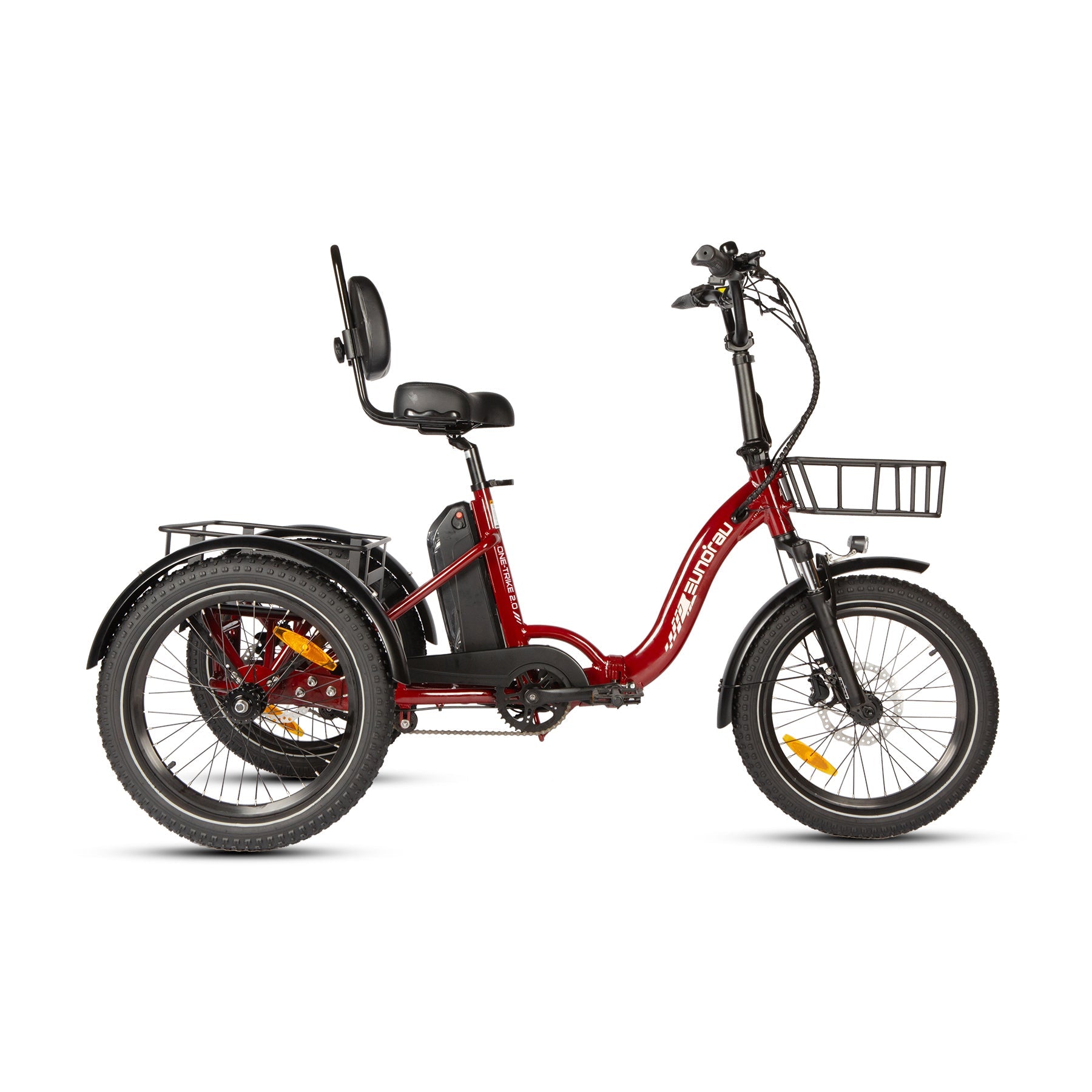

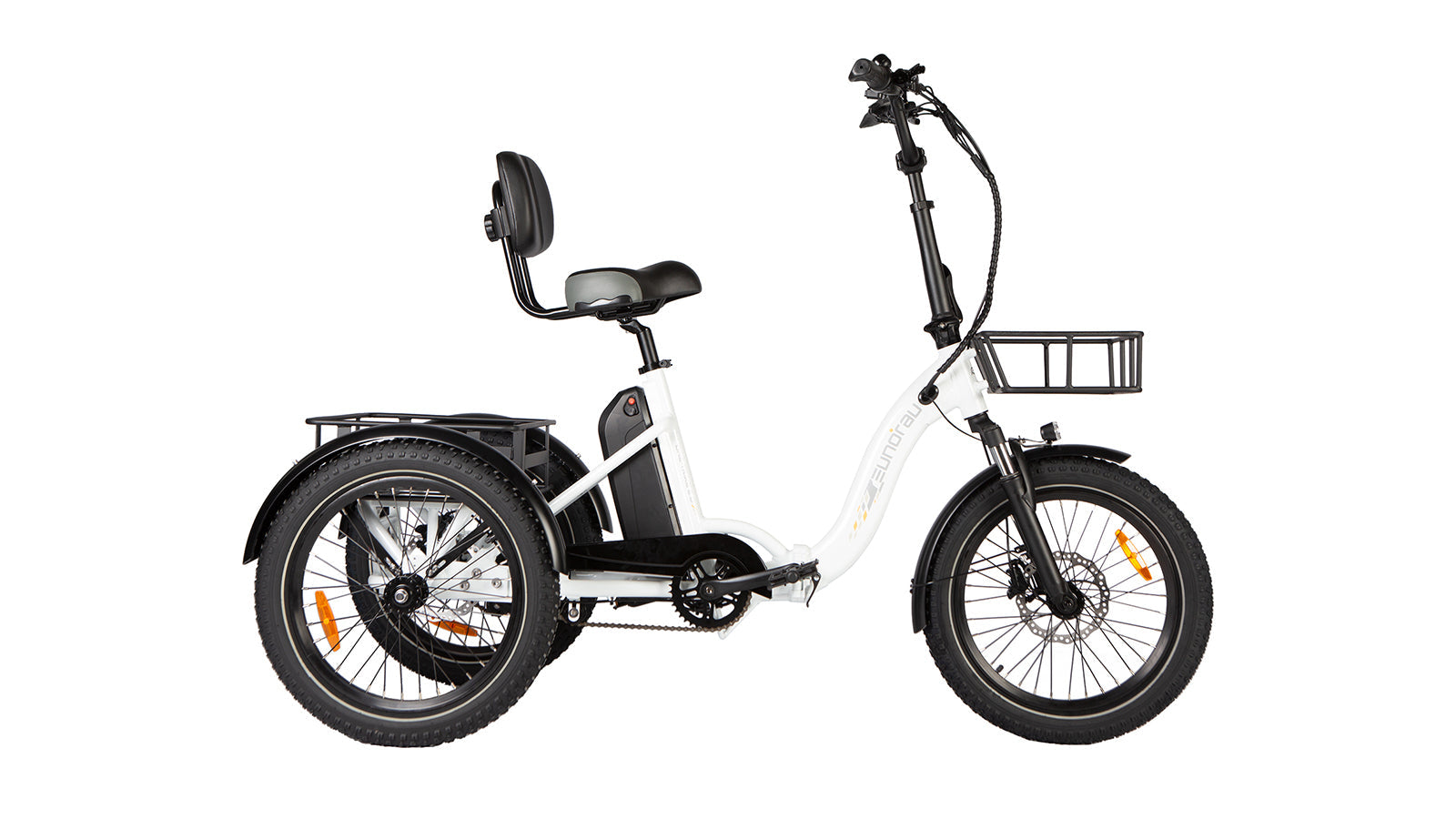

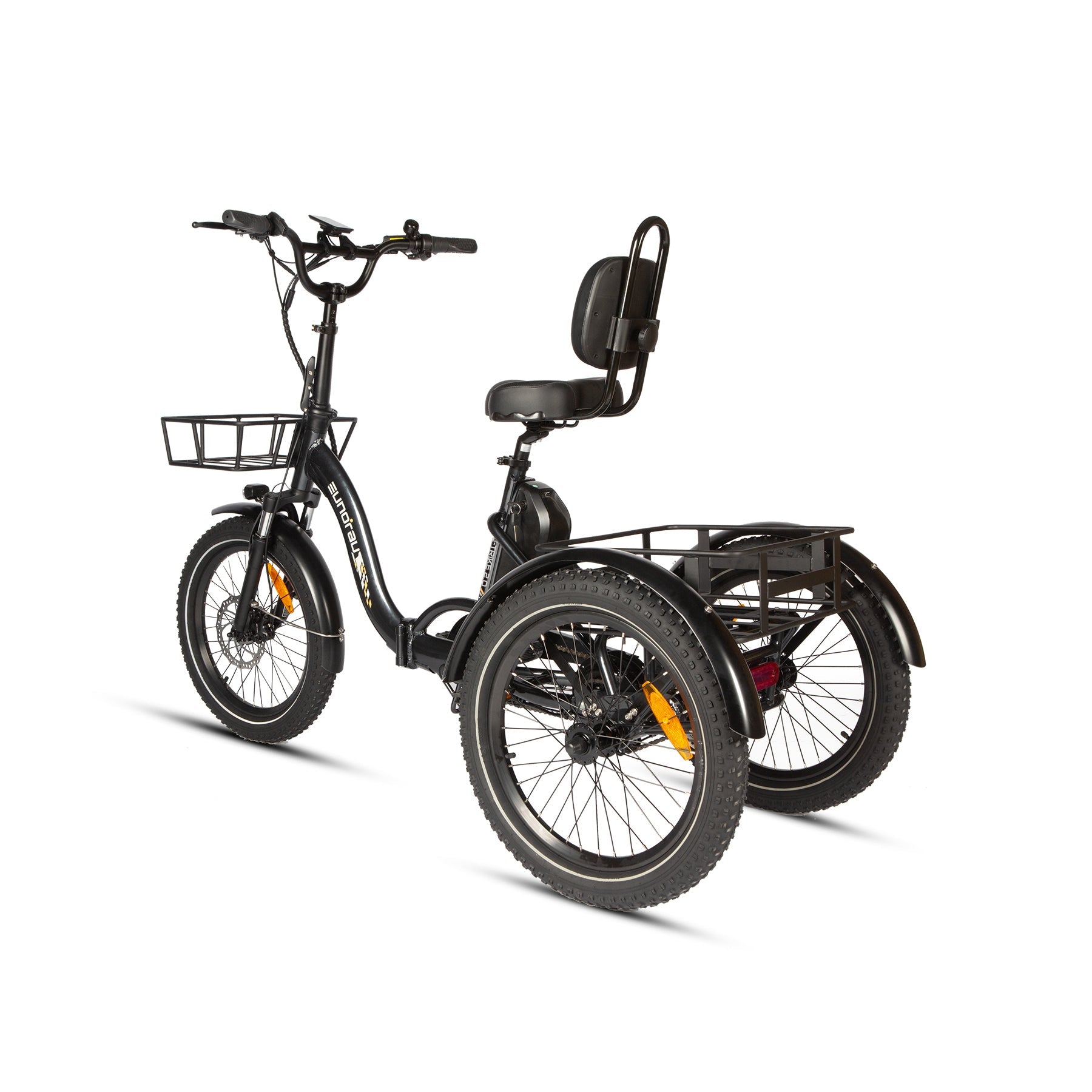

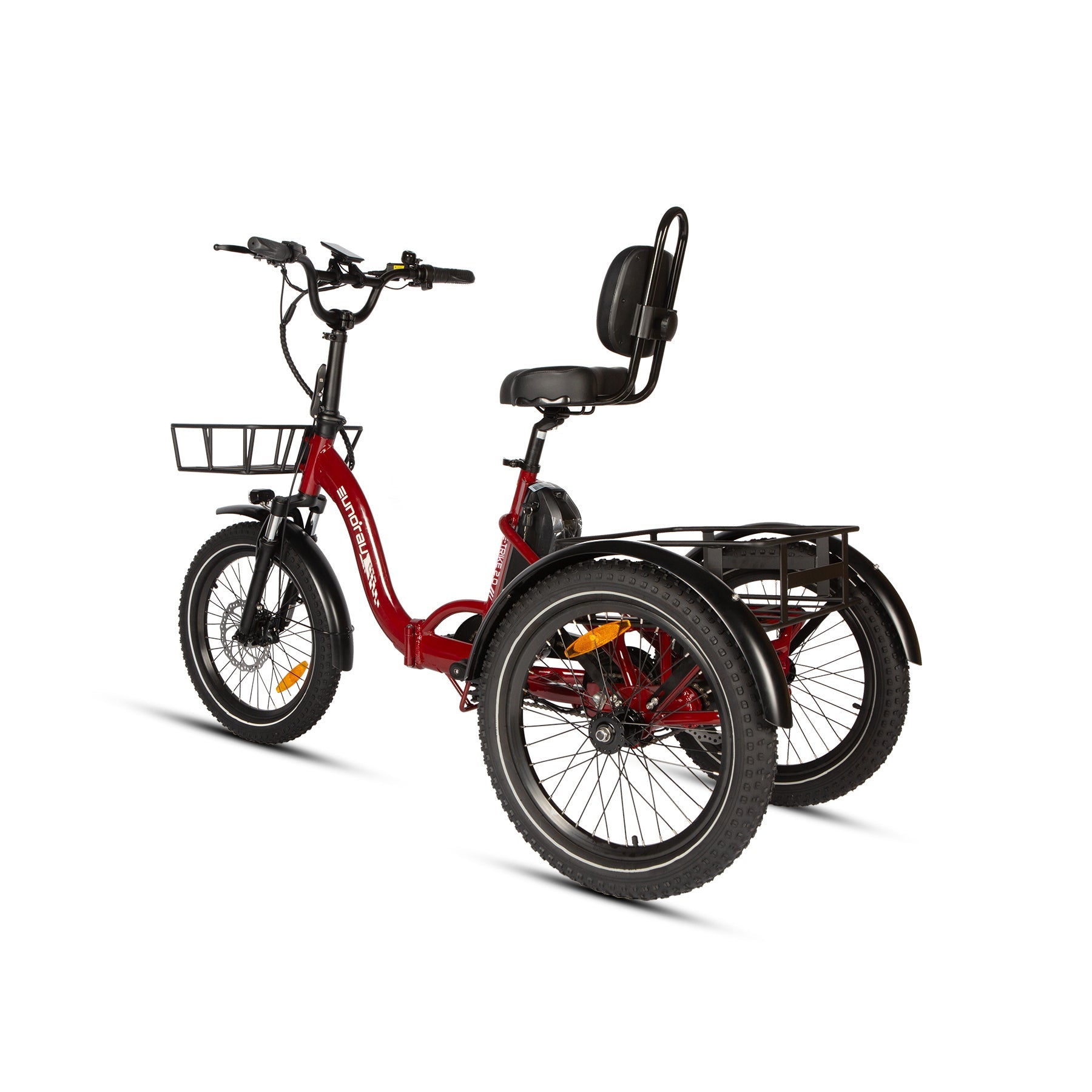

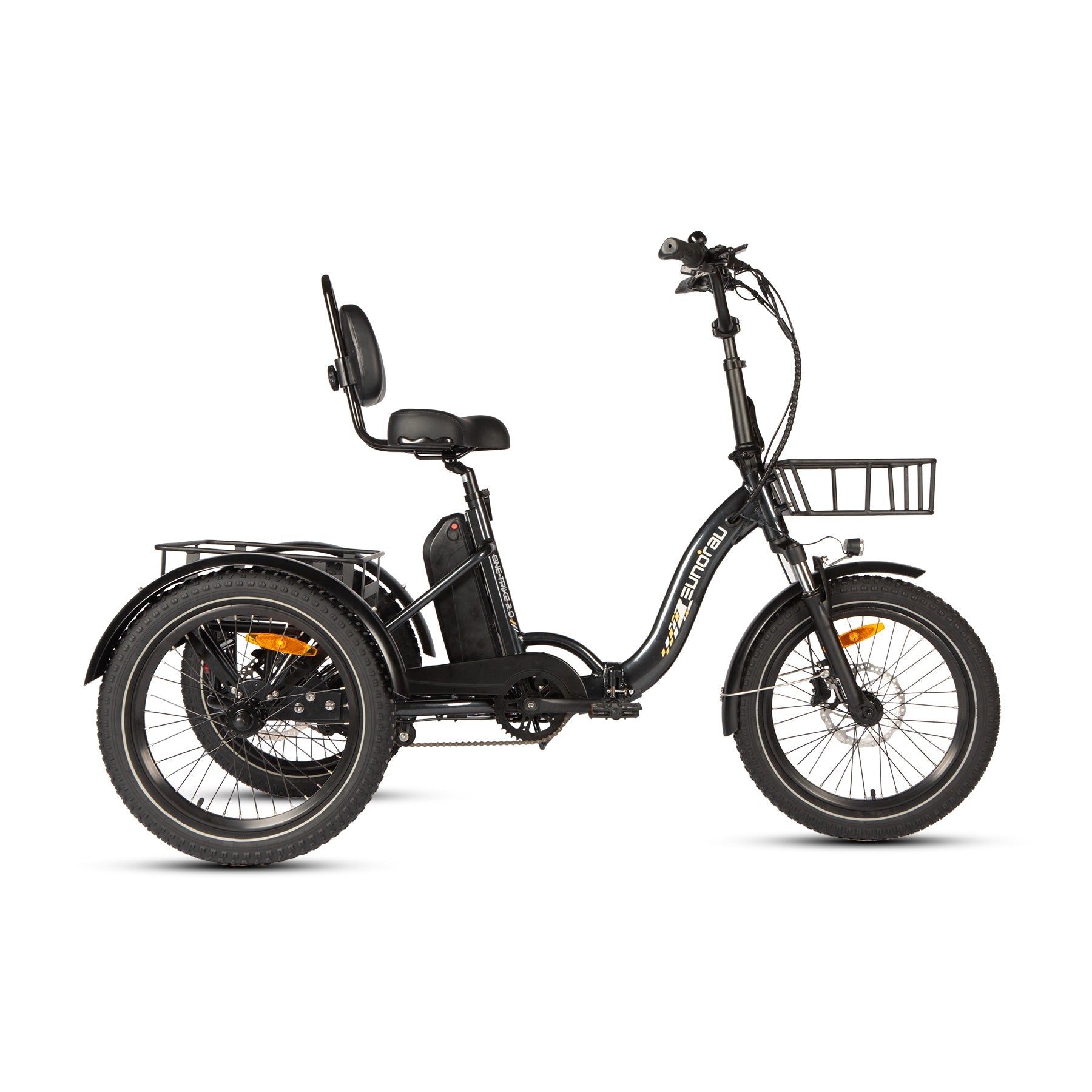

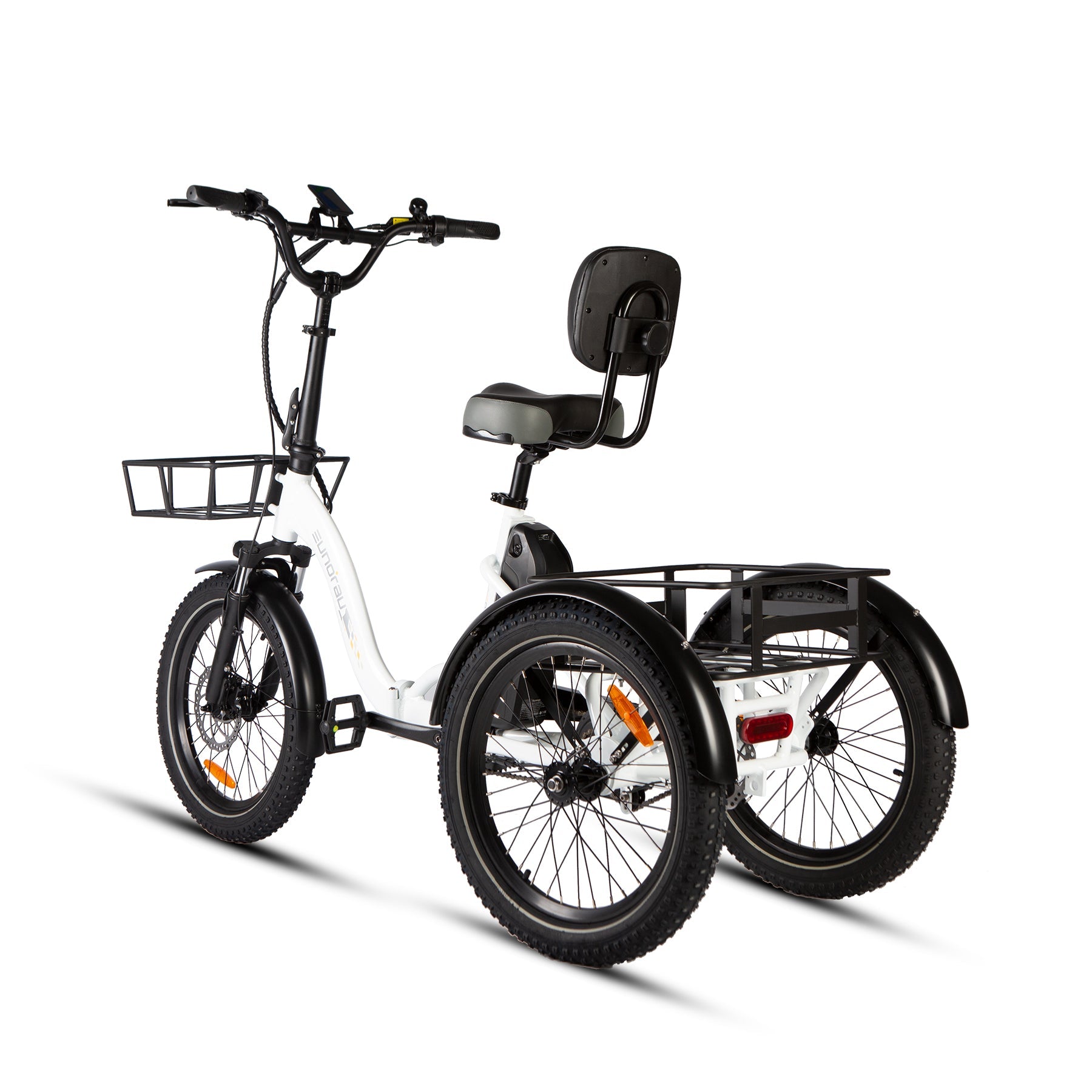

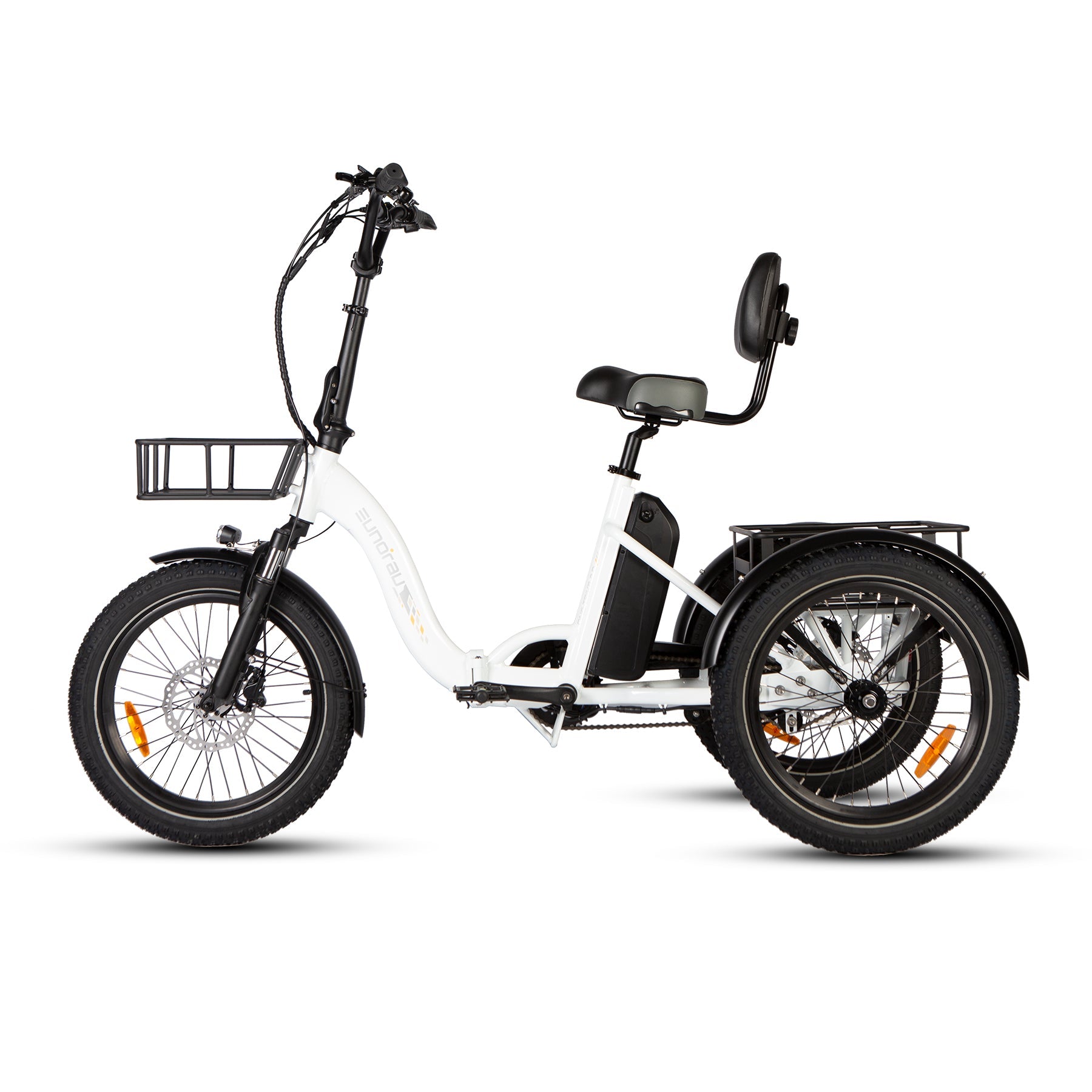

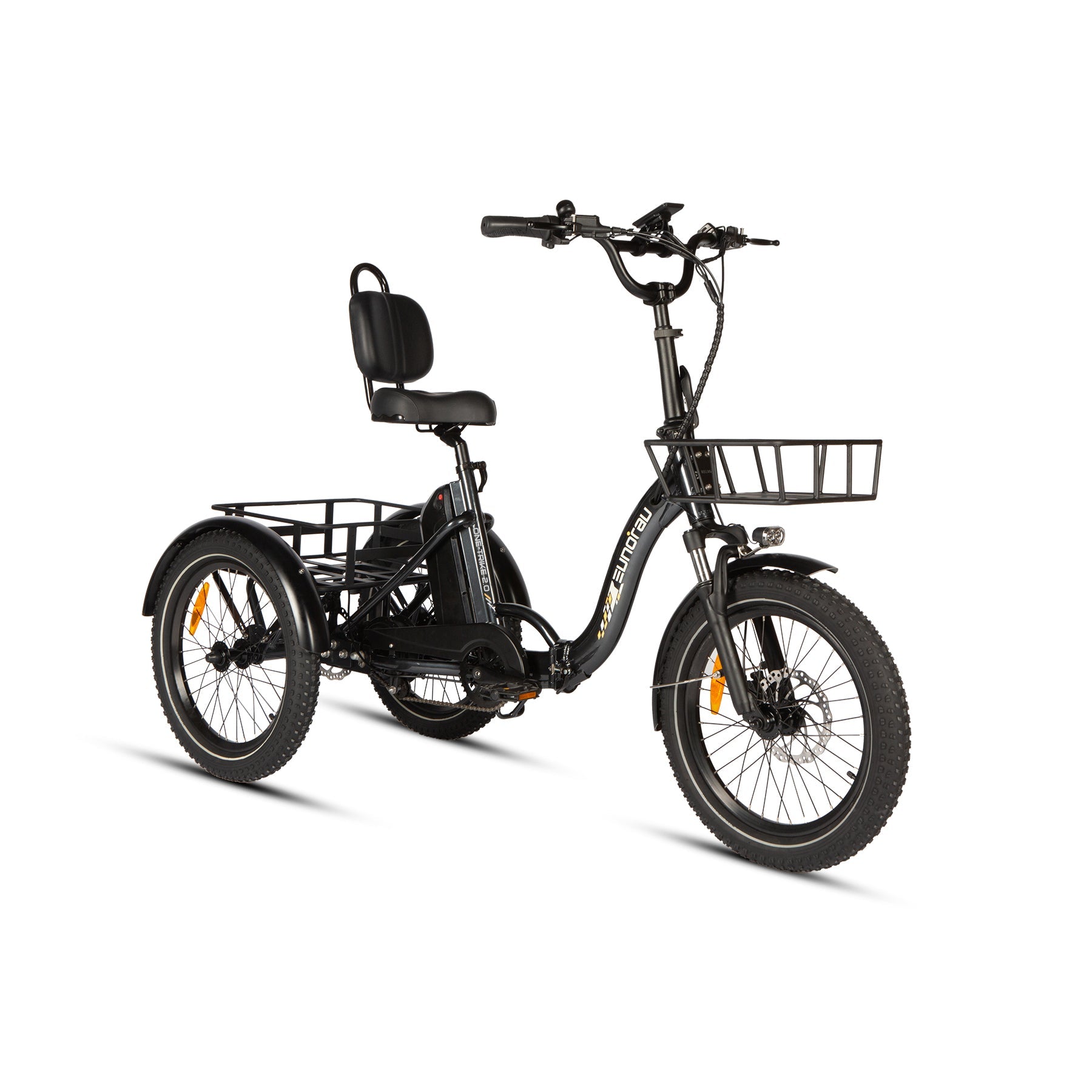

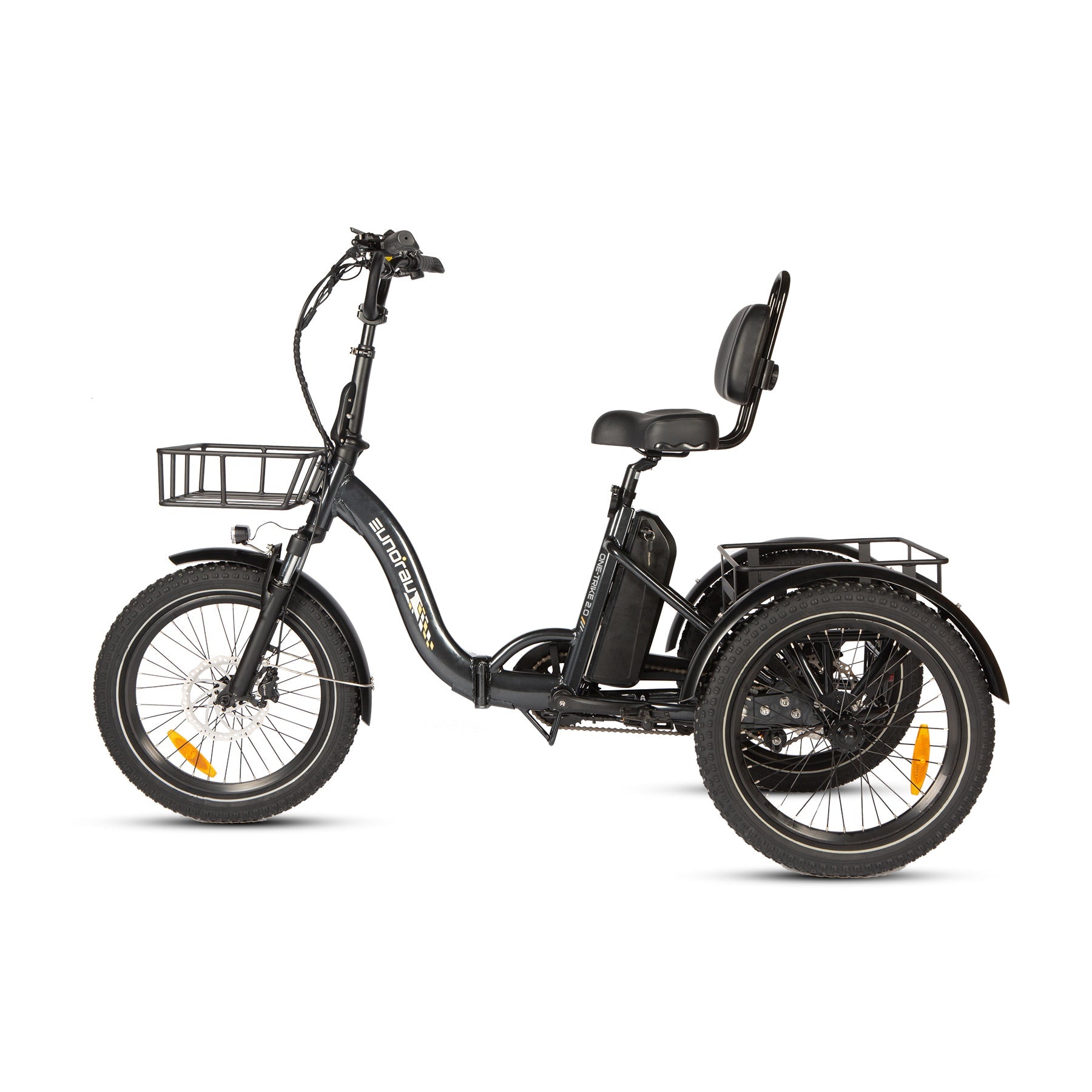

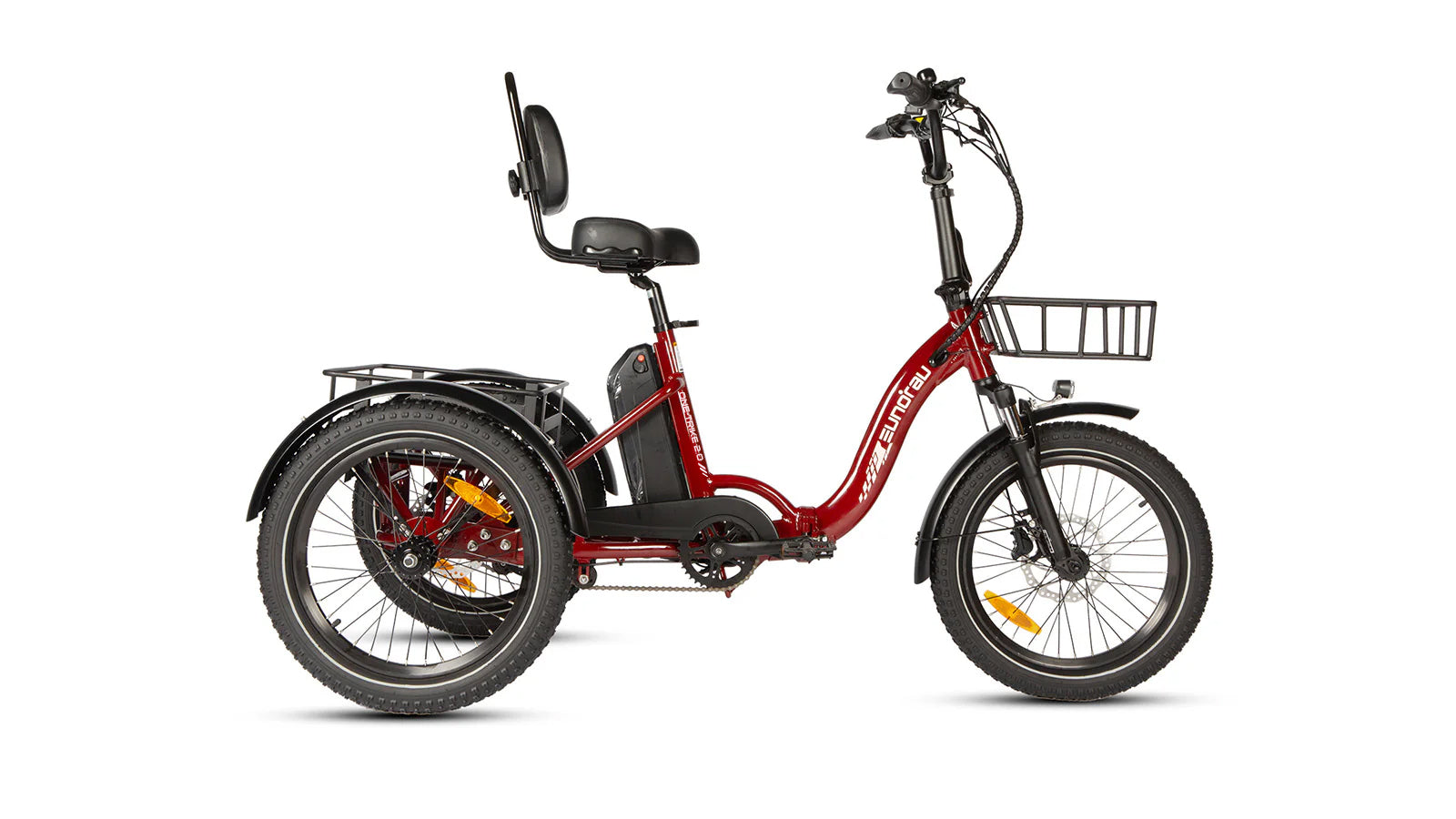

The 20" REAR DRIVE ONE-TRIKE Specifications
Specification
Battery: 48V14.5Ah
Range: 50 Miles
Motor: 48V/500W rear-drive motor with 80 N.m torque
Total Payload Capacity: 440 lbs
Recommended Rider Heights: 5'2" ~ 6'1"
Maximum Speed: 20MPH under speed limited/locked
Charger: US standard 2.0 A smart charger
Controller: 48V 20A
Display: YL-81F Display, UART protocol
Weight: 85.98 lbs
Pedal Assist Intelligent: 0~5 level pedal assist

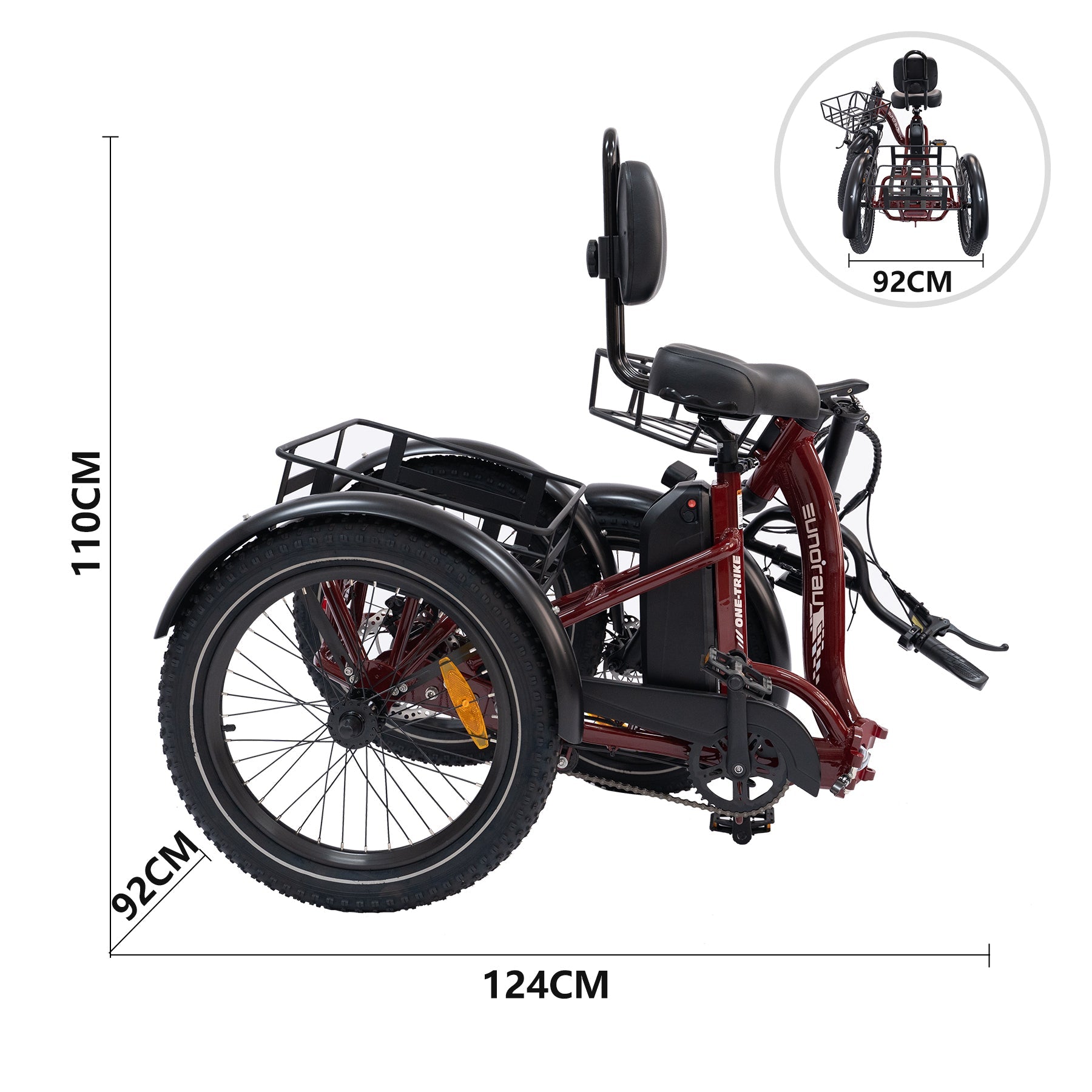

Box Dimensions: (cm) 103 L x 65 W x 74 H
Components
Frame: 6061 Aluminum alloy
Tires: 20" x 2.6" Tires
Handlebar: Adjustable stem for comfort
Fork: Eunorau suspension fork, 40 mm travel
Stem: Folding, 31.8mm clamp diameter
Brake Lever: Hydraulic disc levers with motor cutoff switch
Brake Rotor: EUNORAU design 180 mm disc brakes
Throttle: Half-twist throttle
Shifter: Single speed
Freewheel: 18T single-speed freewheel
Pedal: Aluminum, black
Crank: 165mm Forged alloy
Chainring: 38T Chain-wheel crank
Saddle: Comfort saddle with backrest, seat-to-ground height 32.3” - 38.6”
Rear Light: Integrated brake taillight
Front Light: LED light
Tool: Included
